HIMILAN™ foam is non cross-linked, yet shows higher tensile strength and hardness under high expansion ratio compared to typical ethylene based resin foams.We think HIMILAN™ foam could be a lightweight solution for the applications typical foams could not be used due to insufficient physical properties.
HIMILAN™ foam is non cross-linked, yet shows higher tensile strength and hardness under high expansion ratio compared to typical ethylene based resin foams.We think HIMILAN™ foam could be a lightweight solution for the applications typical foams could not be used due to insufficient physical properties.
Physical Properties of Foam - HIMILAN™ vs Ethylene-based resins
HIMILAN™ foam is non cross-linked, yet shows higher tensile strength and hardness compared to LLDPE, LDPE and EVA foams even under high expansion ratio.
Physical Properties of Foam - HIMILAN™ vs Ethylene-based resins
HIMILAN™ foam is non cross-linked, yet shows higher tensile strength and hardness compared to LLDPE, LDPE and EVA foams even under high expansion ratio.
Physical Properties
HIMILAN™
LLDPE
LDPE
EVA
Tensile Strength
High
Medium
Medium
Low
Tear Strength
High
Medium
Medium
Low
Elongation
Low
Medium
Medium
High
Hardness
High
Medium
Medium
Low
Energy Absorption
Excellent
N/A
N/A
Good
Cyclic compression set (Durability)
Good
Poor
Not good
Good
Physical Properties
HIMILAN™
LLDPE
LDPE
EVA
Tensile Strength
High
Medium
Medium
Low
Tear Strength
High
Medium
Medium
Low
Elongation
Low
Medium
Medium
High
Hardness
High
Medium
Medium
Low
Energy Absorption
Excellent
N/A
N/A
Good
Cyclic compression set (Durability)
Good
Poor
Not good
Good

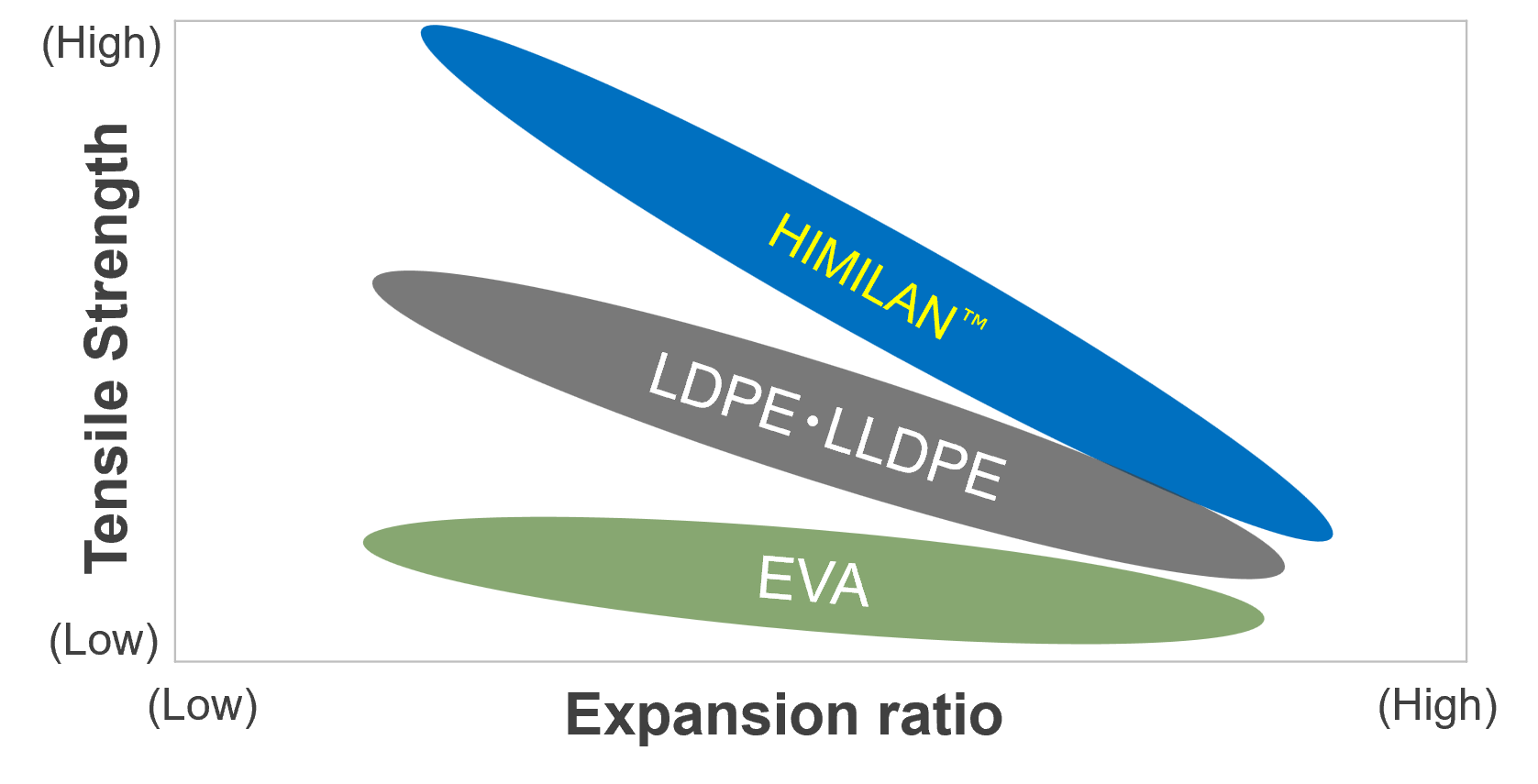

Strong under high expansion ratio
Hard under high expansion ratio

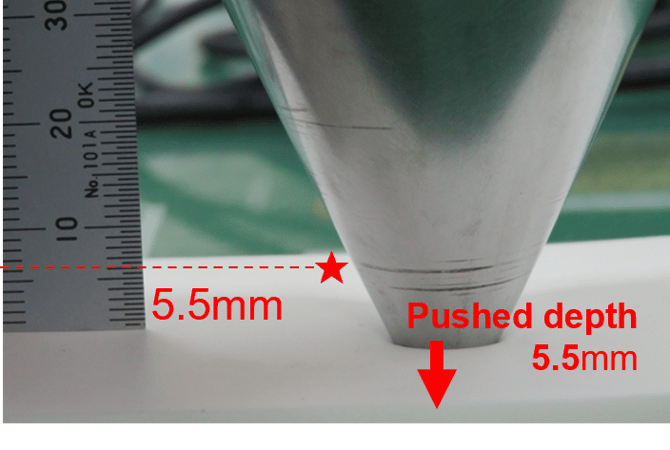

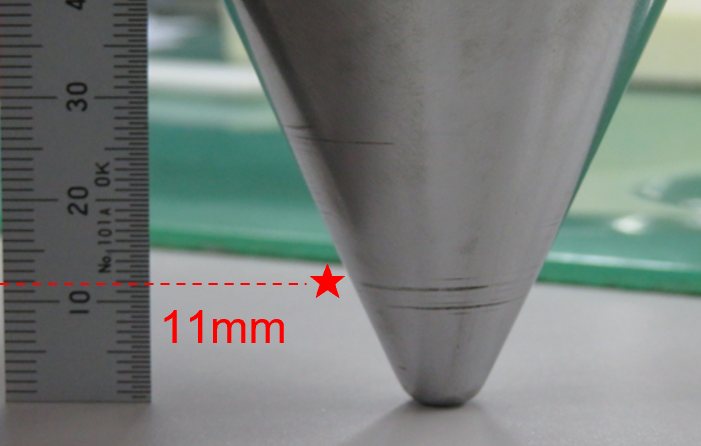

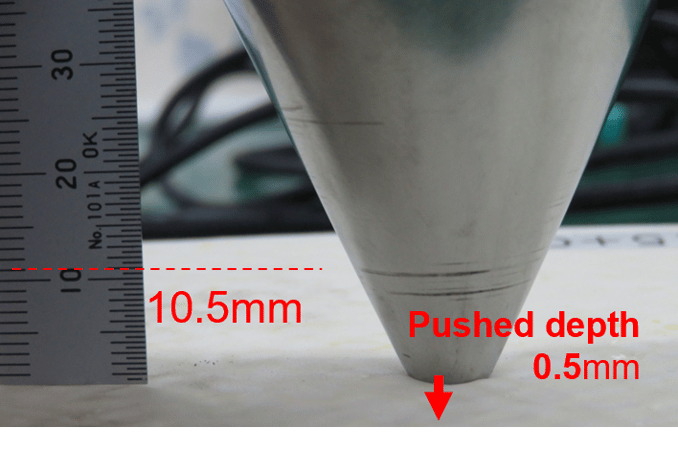

Indentation Test of Foam - HIMILAN™ vs Ethylene-based resins
Compare foams at the same expansion ratio, HIMILAN™ foam shows smaller change of shape (pushed depth) than EVA foam due to its superior hardness.
Indentation Test of Foam - HIMILAN™ vs Ethylene-based resins
Compare foams at the same expansion ratio, HIMILAN™ foam shows smaller change of shape (pushed depth) than EVA foam due to its superior hardness.
